有时候页面中的部分内容相同,或者是一些静态的内容组合,这时候我们就可以把这些见面封装到一个XIB里
新建Single View Application
新建一个View.Xib
- Command+N–>User Interface–>View
- 把界面大小改为Freeform
- 添加一个UILabel, 两个UIView, 并设置对应的背景色

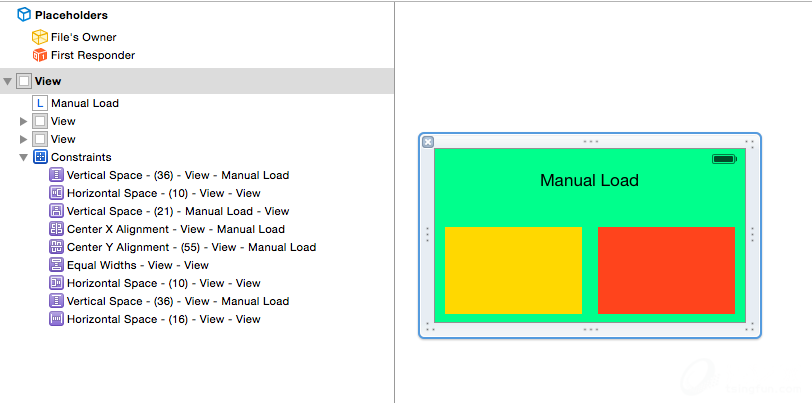

- 添加对应的约束,让两个UIView等宽,且Space都是10, 高度固定,且与周围的约速为10, 对UILabel也设置对应的约速,细节就不写了,看图
使用Xib

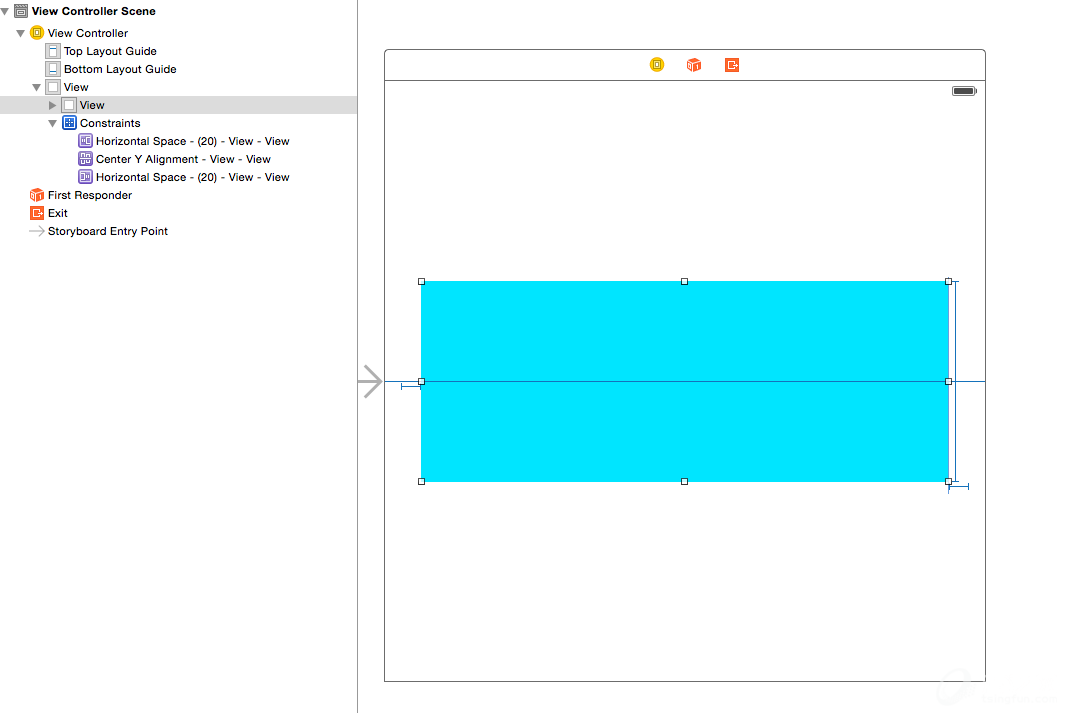

在ViewController添加 一个UIView, 并设置对应的约束,连接这个UIView为Controller的 IBOutlet ContainerView
-
在ViewDidLoad里添加如下代码
super.viewDidLoad() let arr = NSBundle.mainBundle().loadNibNamed("View", owner: nil, options: nil) let v = arr[0] as! UIView containerView.addSubview(v)

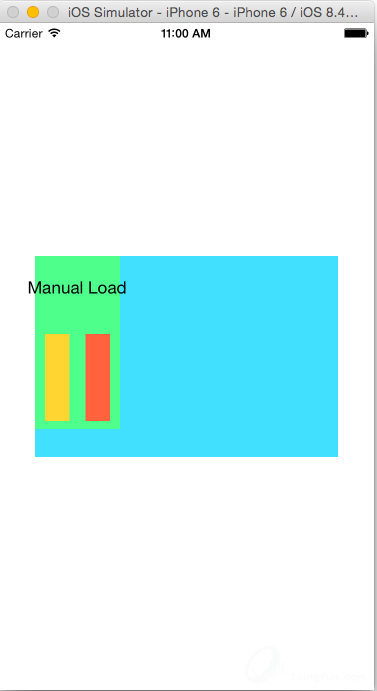

运行
试图添加进去了,但是试图显示的不对,那是因为没有添加约束
-
添加约束
import UIKit class ViewController: UIViewController { @IBOutlet weak var containerView: UIView! var v: UIView! override func viewDidLoad() { super.viewDidLoad() let arr = NSBundle.mainBundle().loadNibNamed("View", owner: nil, options: nil) v = arr[0] as! UIView containerView.addSubview(v) setUpConstraint() // Do any additional setup after loading the view, typically from a nib. } override func didReceiveMemoryWarning() { super.didReceiveMemoryWarning() // Dispose of any resources that can be recreated. } func setUpConstraint() { v.setTranslatesAutoresizingMaskIntoConstraints(false) containerView.addConstraint(NSLayoutConstraint( item:v, attribute:.Leading, relatedBy:.Equal, toItem:containerView, attribute:.Left, multiplier:1, constant:0)) containerView.addConstraint(NSLayoutConstraint( item:v, attribute:.Trailing, relatedBy:.Equal, toItem:containerView, attribute:.Right, multiplier:1, constant:0)) containerView.addConstraint(NSLayoutConstraint( item:v, attribute:.Top, relatedBy:.Equal, toItem:containerView, attribute:.Top, multiplier:1, constant:0)) containerView.addConstraint(NSLayoutConstraint( item:v, attribute:.Bottom, relatedBy:.Equal, toItem:containerView, attribute:.Bottom, multiplier:1, constant:0)) } }
-

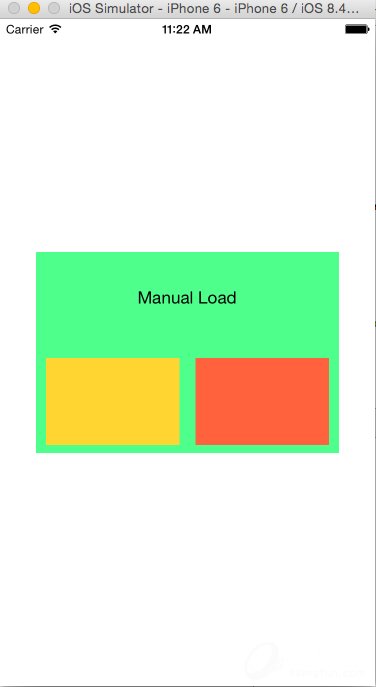

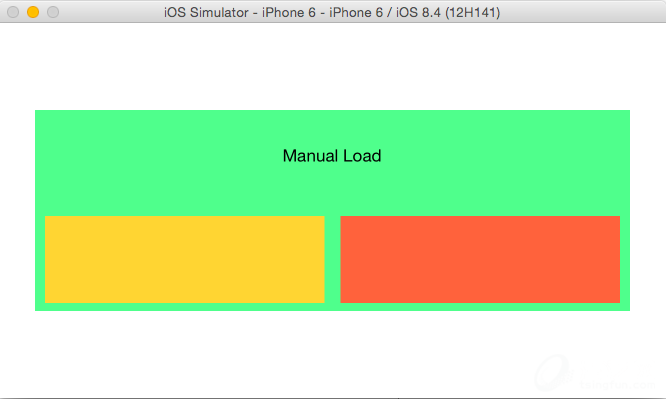

运行结果, 我们的Xib已经可以自适应容器了
